Hello everyone. It is my pleasure to attend this conference. The topic focus on Gateway Load Balancing Methods in Connecting MANET into Internet |
| ICACT20210250 Slide.02
[Big Slide]
|
Chrome Click!! |
 |

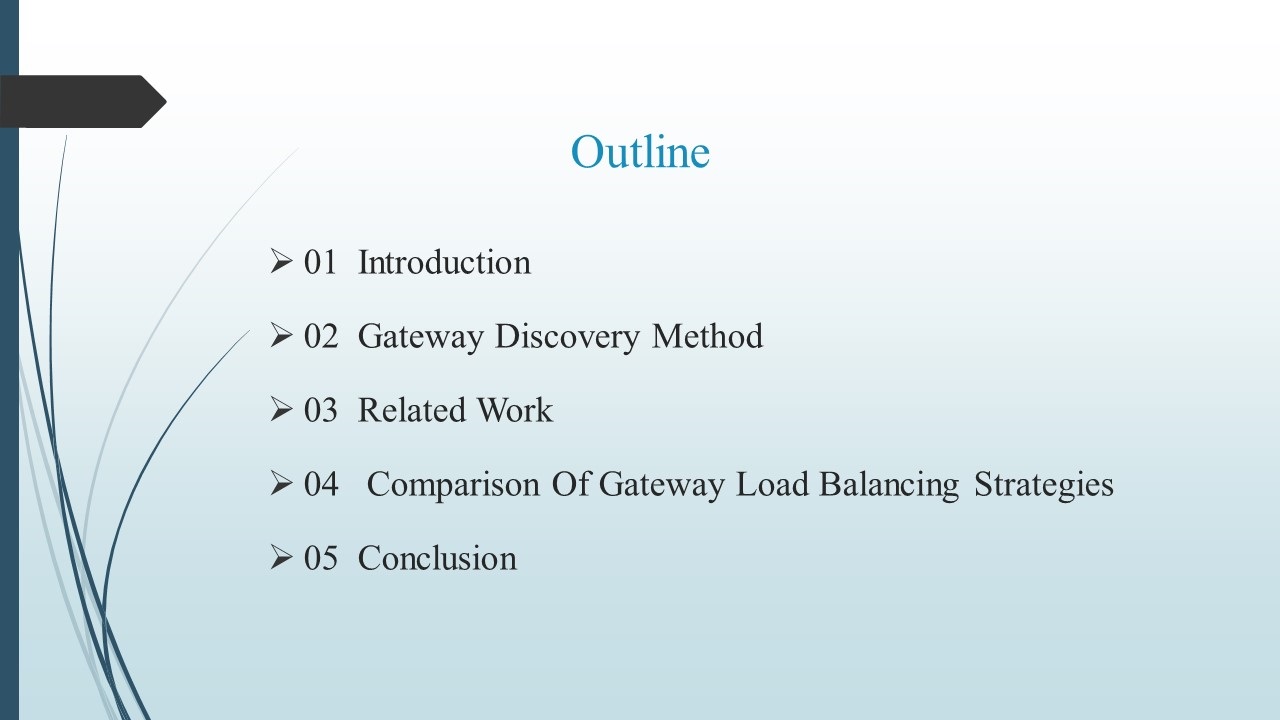

My presentation includes Introduction, Gateway Discovery Method, Related Work, Comparison Of Gateway Load Balancing Strategies and the last is conclusion. |
| ICACT20210250 Slide.03
[Big Slide]
[YouTube] |
Chrome Click!! |
 |
Let me first Introduce Wireless mobile ad hoc network |
| ICACT20210250 Slide.04
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

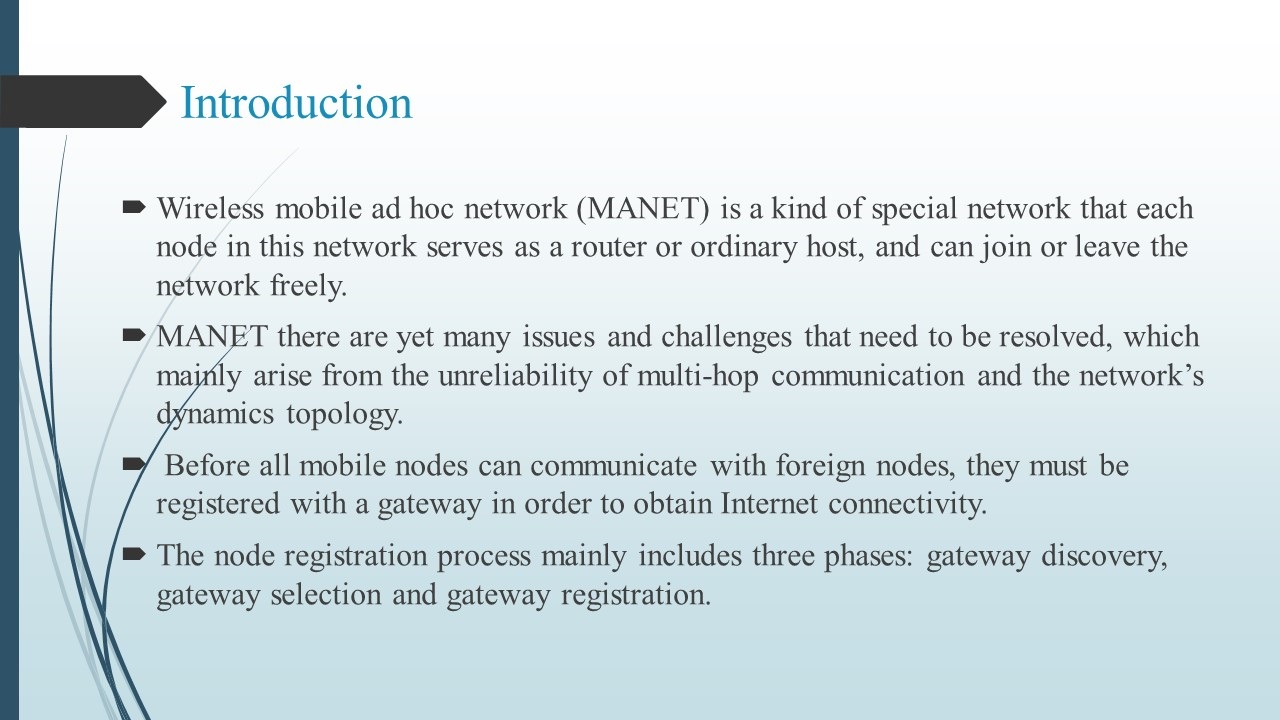

The Network is a kind of special network that each node in this network serves as a router or ordinary host, and can join or leave the network freely. But The Network there are yet many issues and challenges that need to be resolved, which mainly arise from the unreliability of multi-hop communication and the network’s dynamics topology. |
| ICACT20210250 Slide.05
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

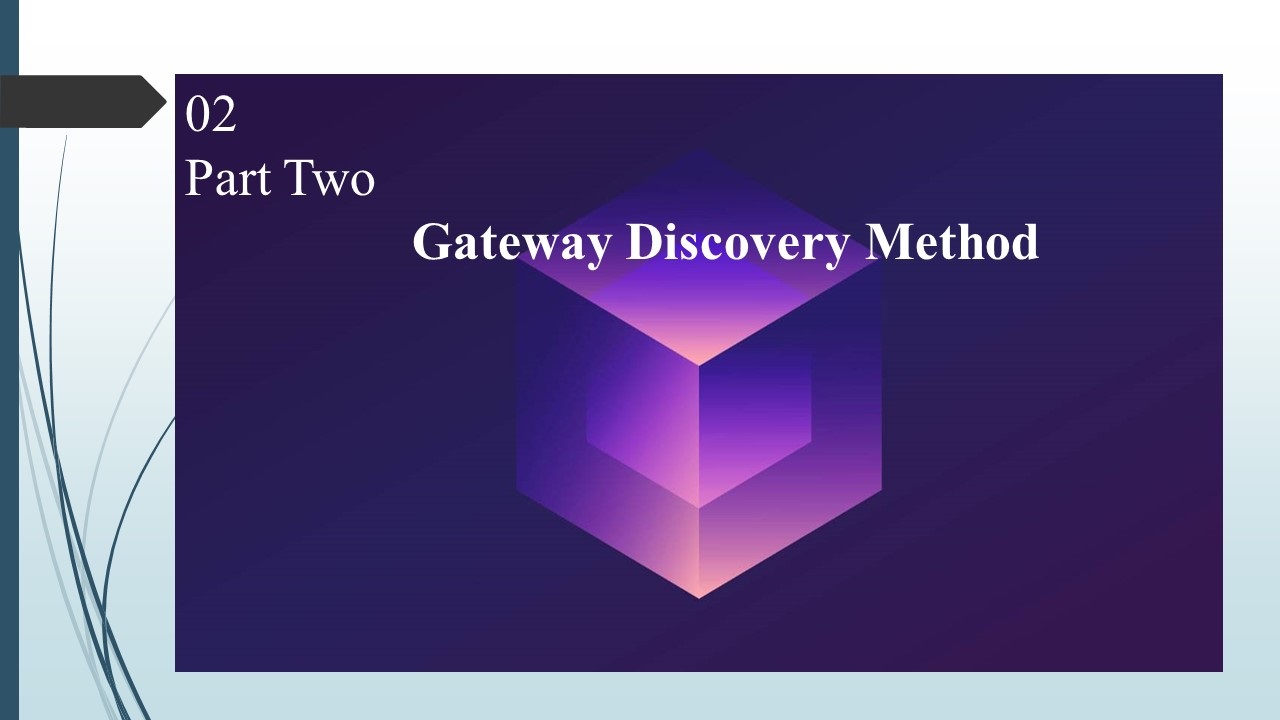

Then, we will briefly introduce gateway discovery method |
| ICACT20210250 Slide.06
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

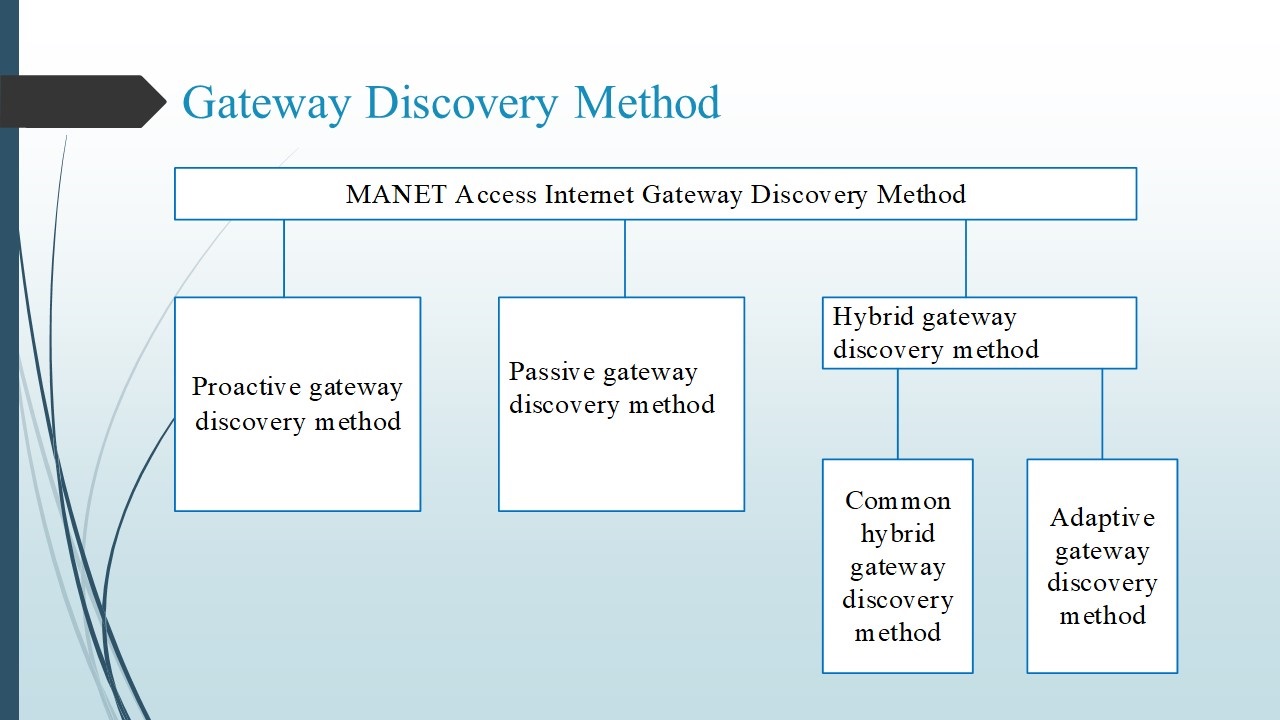

This method can be divided into three categories: proactive, passive and hybrid . Next, I'll describe these three different ways in detail |
| ICACT20210250 Slide.07
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

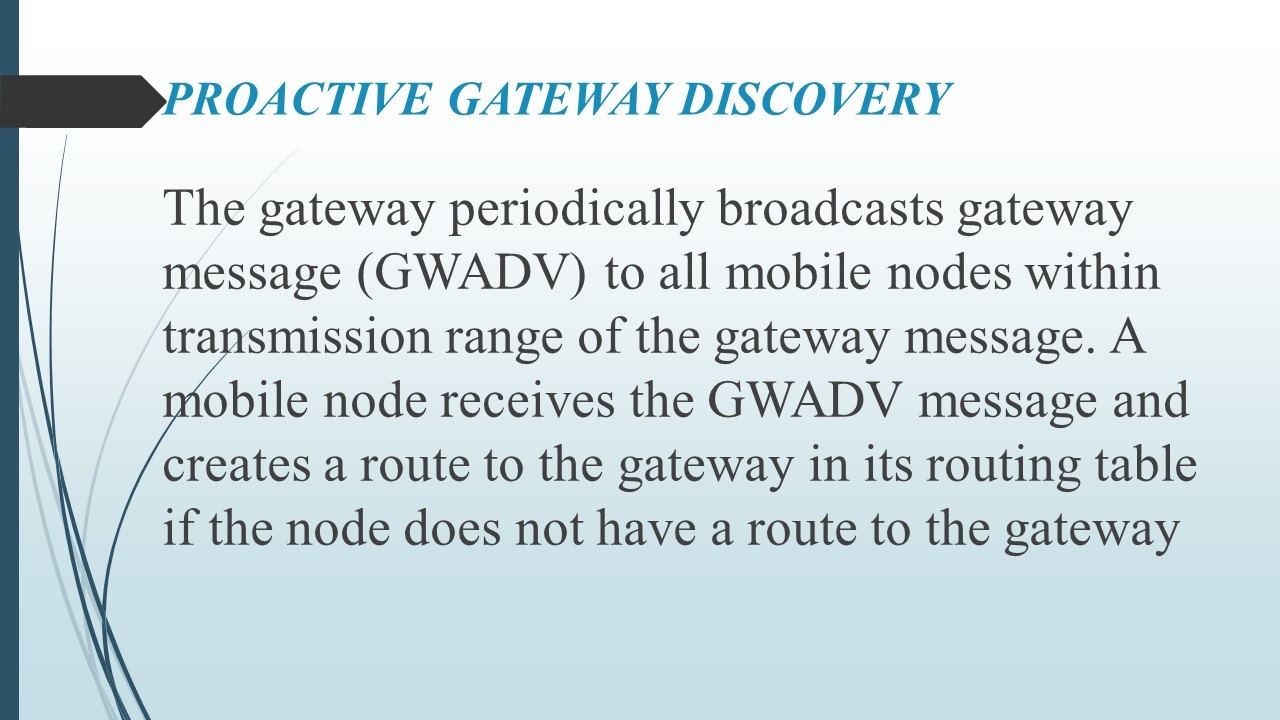

The first one is proactive gateway discovery, the gateway periodically broadcasts gateway message to all mobile nodes within transmission range of the gateway message. A mobile node receives the gateway message and creates a route to the gateway in its routing table if the node does not have a route to the gateway |
| ICACT20210250 Slide.08
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

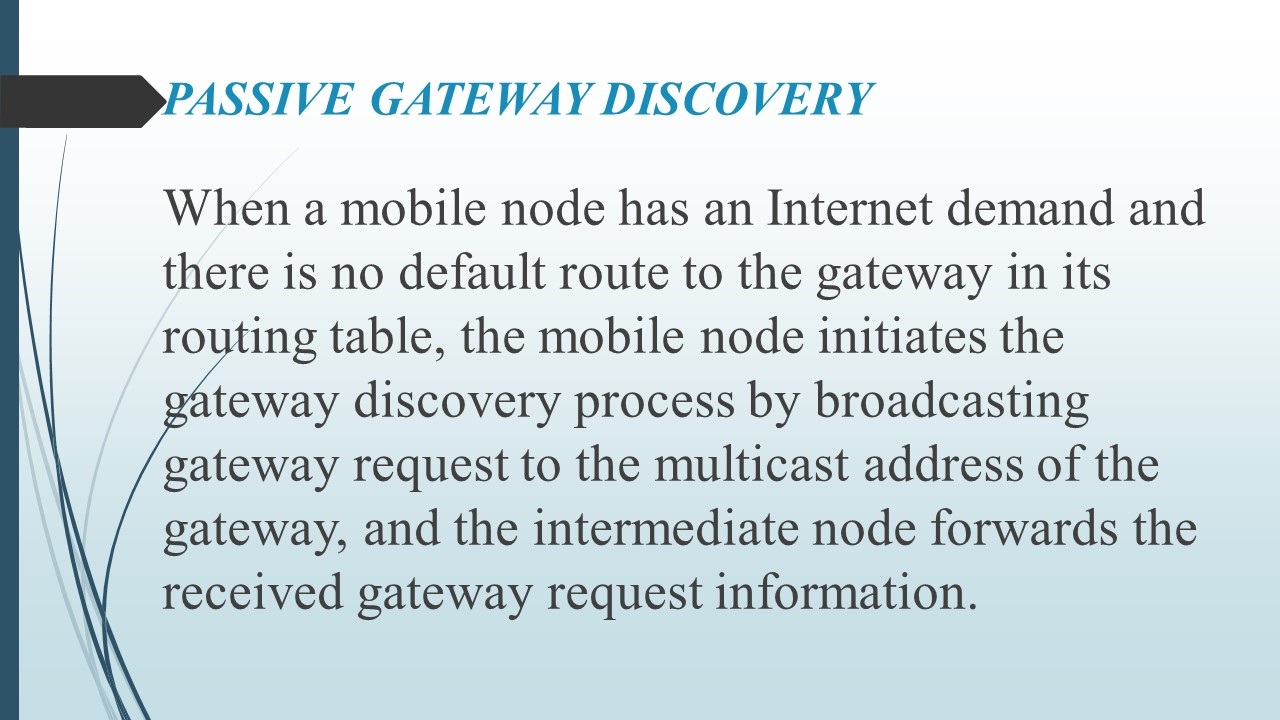

The second one is passive gateway discovery, when a mobile node has an Internet demand and there is no default route to the gateway in its routing table, the mobile node initiates the gateway discovery process by broadcasting gateway request to the multicast address of the gateway, and the intermediate node forwards the received gateway request information. |
| ICACT20210250 Slide.09
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

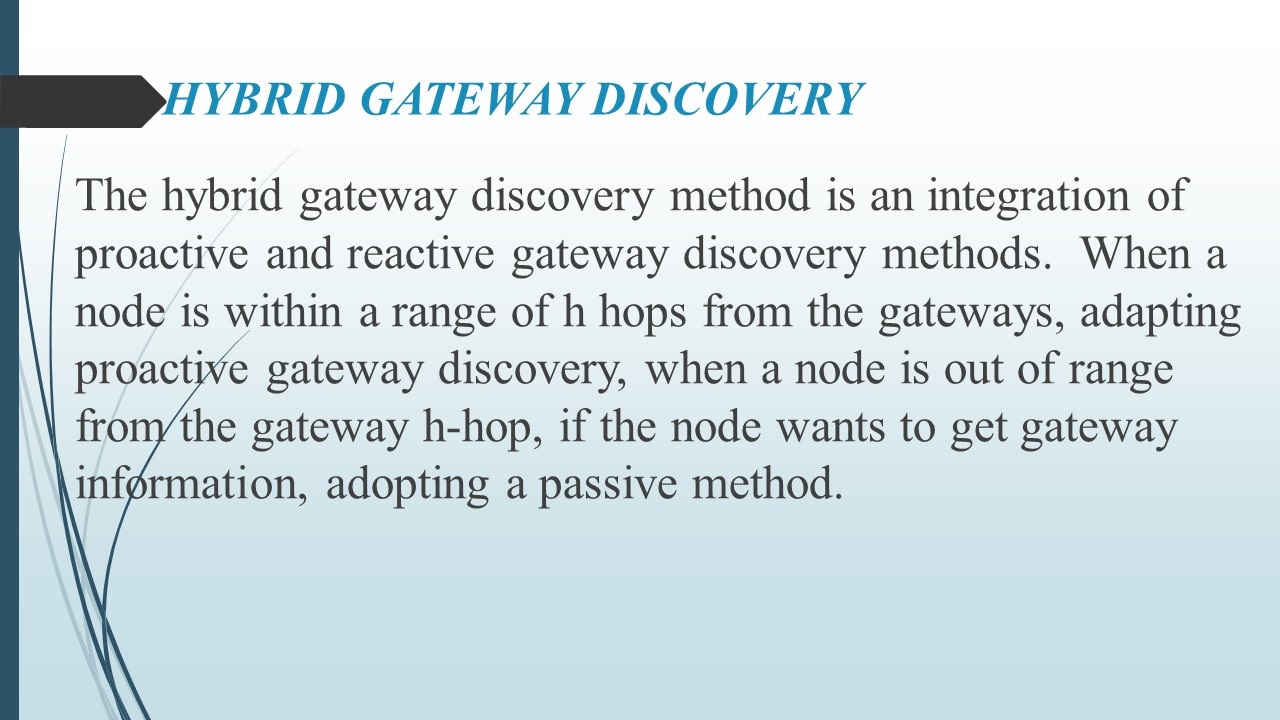

The last one is hybrid gateway discovery, the hybrid gateway discovery method is an integration of proactive and reactive gateway discovery methods. |
| ICACT20210250 Slide.10
[Big Slide]
[YouTube] |
Chrome Click!! |
 |
Next, I will introduce the third part, related work, this article introduces ten kinds of gateway load balancing strategies. I will give a brief introduction to each strategy |
| ICACT20210250 Slide.11
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

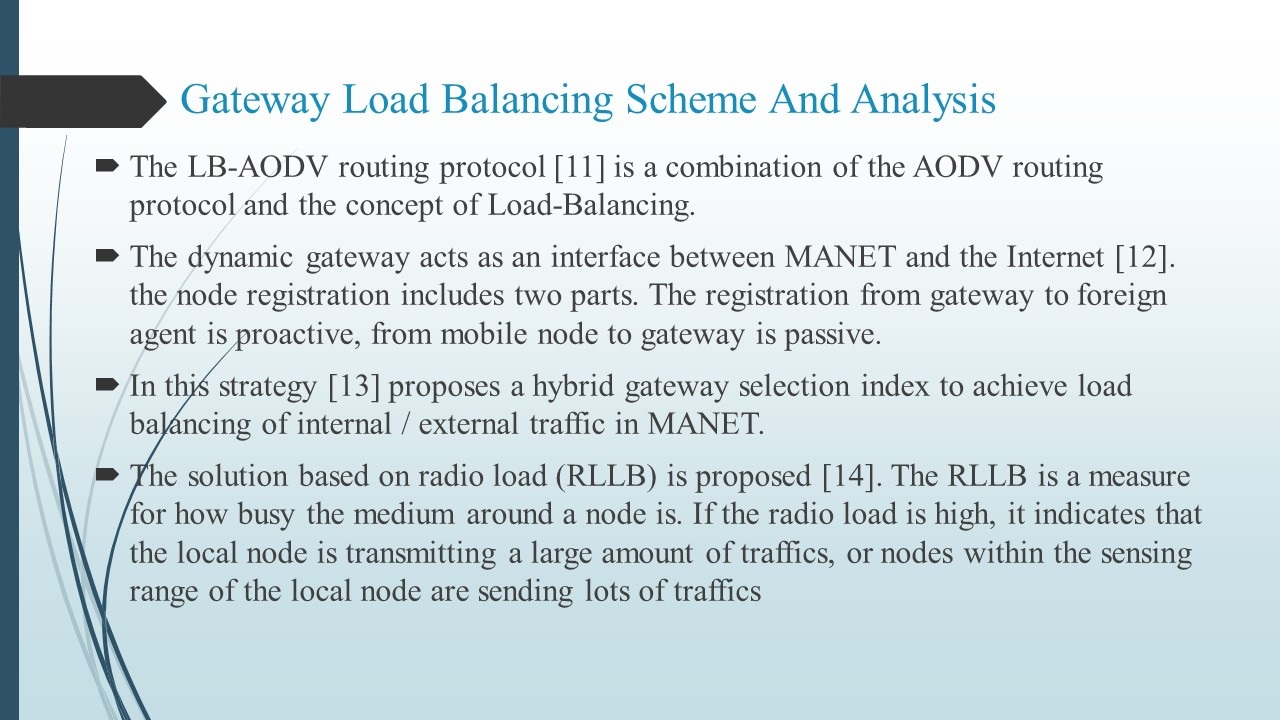

The LB-AODV routing protocol [11] is a combination of AODV and the concept of Load-Balancing.
The dynamic gateway acts as an interface between MANET and the Internet [12]. the node registration includes two parts. The registration from gateway to agent is proactive, from node to gateway is passive.
The strategy [13] proposes a hybrid gateway selection index to achieve load balancing of internal or external traffic in mobile ad hoc network.
The solution based on radio load is proposed [14]. The radio load is a measure for how busy the medium around a node is. If the radio load is high, it indicates that the local node is transmitting a large amount of traffics.
|
| ICACT20210250 Slide.12
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

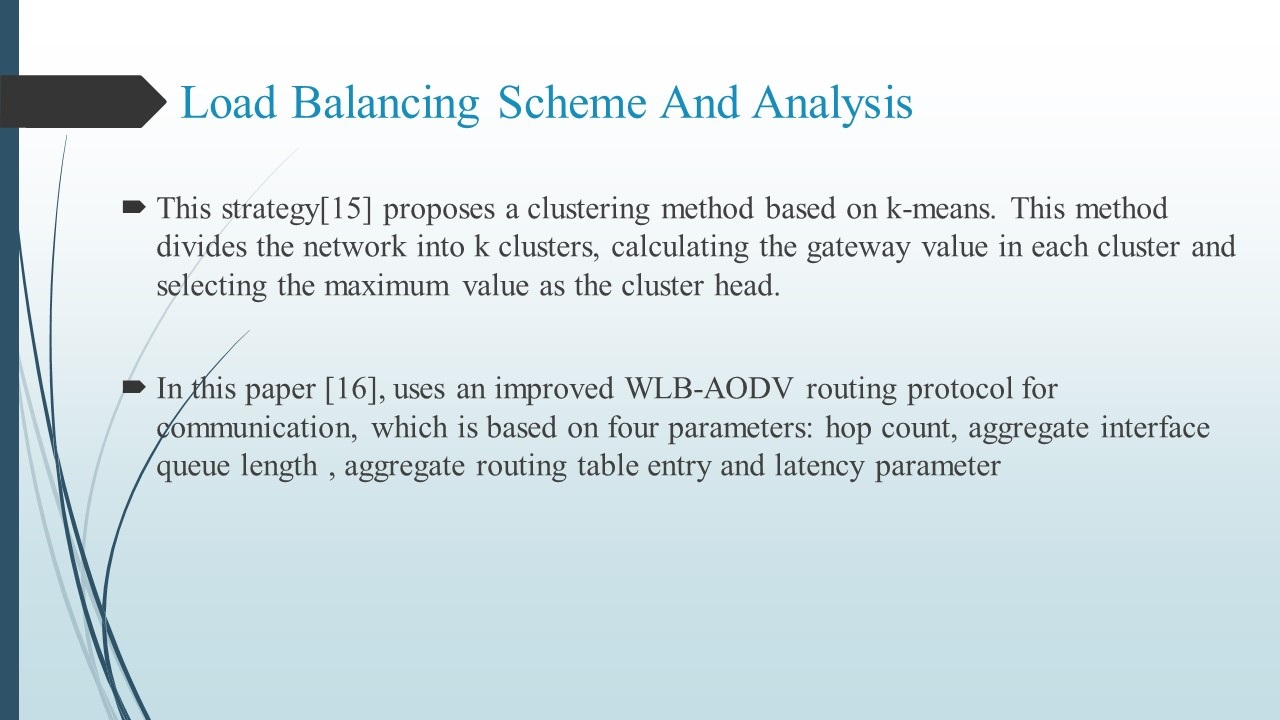

This strategy [15] proposes a clustering method based on k-means. This method divides the network into k clusters, calculating gateway value in each cluster and selecting the maximum value as the cluster head.
this paper [16] uses an improved WLB-AODV routing protocol for communication, which is based on four parameters: hop count, aggregate interface queue length, aggregate routing table entry and latency parameter
|
| ICACT20210250 Slide.13
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

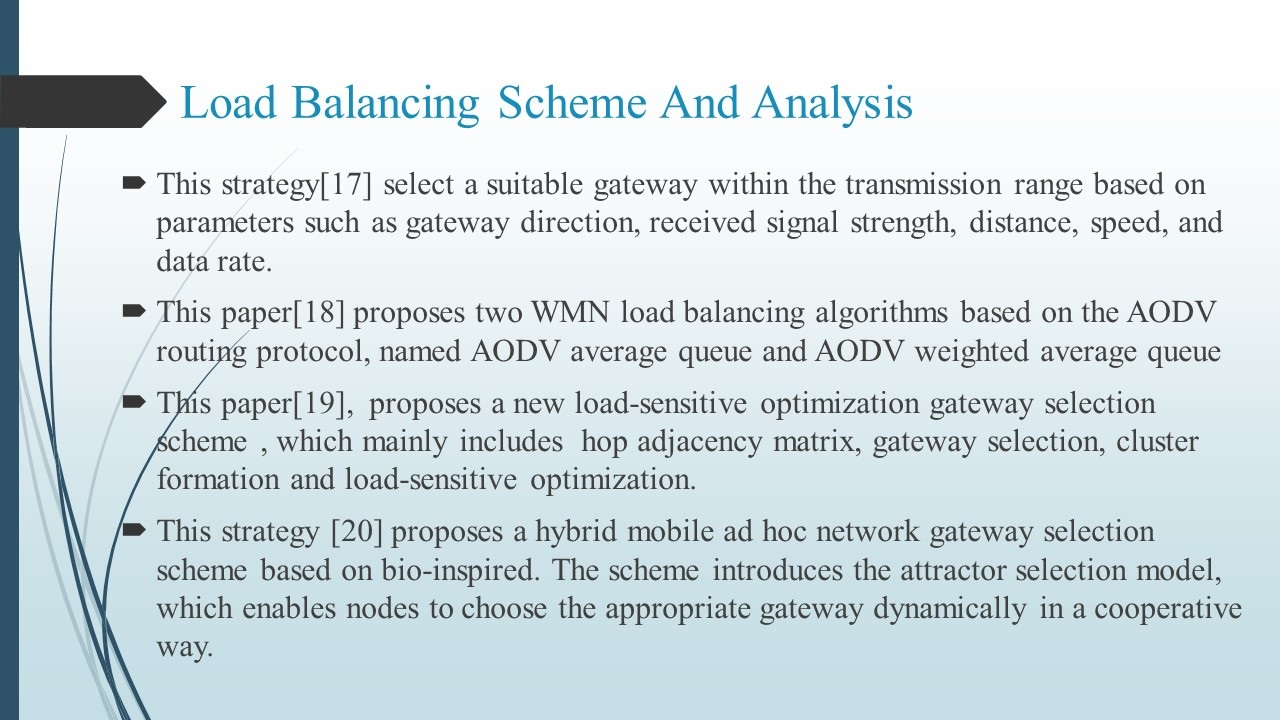

This strategy [17] select a suitable gateway within the transmission range based on parameters such as gateway direction, received signal strength, distance, speed and data rate.
This paper [18] proposes two WMN load balancing algorithms based on the AODV routing protocol, named AODV average queue and AODV weighted average queue
This paper [19] proposes a new load-sensitive optimization gateway selection scheme, which mainly includes hop adjacency matrix, gateway selection, cluster formation and load-sensitive optimization.
This strategy [20] proposes a hybrid mobile ad hoc network gateway selection scheme based on bio-inspired. The scheme introduces the attractor selection model, which enables nodes to choose the appropriate gateway dynamically in a cooperative way.
|
| ICACT20210250 Slide.14
[Big Slide]
[YouTube] |
Chrome Click!! |
 |
After that, we will compare the gateway load balancing strategies from different perspectives |
| ICACT20210250 Slide.15
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

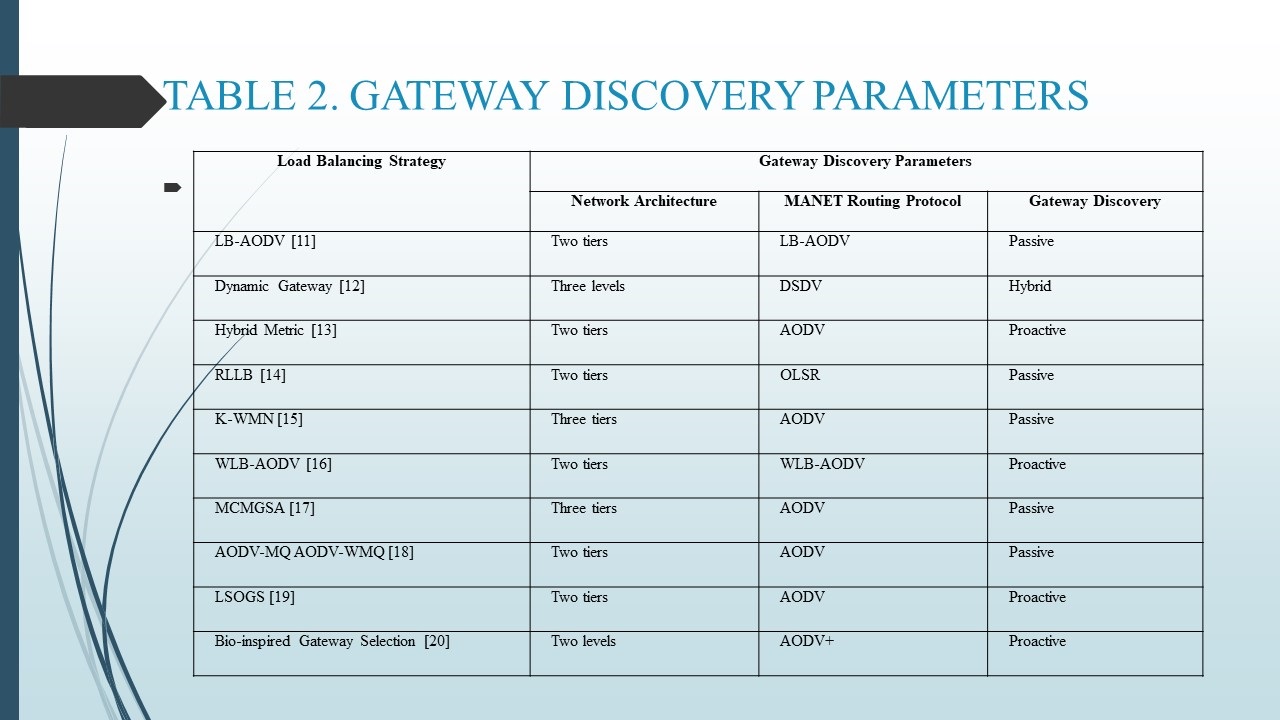

look at the table two, the table based on gateway load balancing strategies by considering network architecture, routing protocol, gateway discovery and load balancing parameters |
| ICACT20210250 Slide.16
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

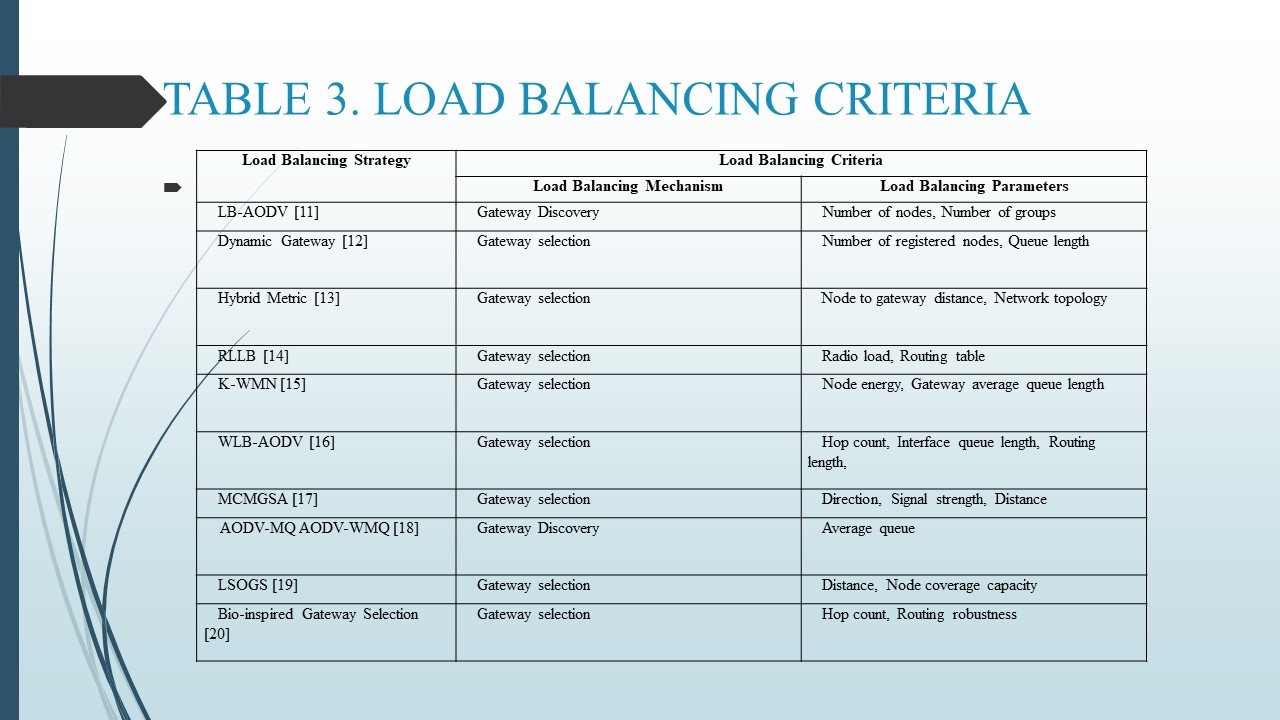

The table three compares these strategies in terms of load balancing mechanism and parameters |
| ICACT20210250 Slide.17
[Big Slide]
[YouTube] |
Chrome Click!! |
 |
Next, let's go to the fifth part, conclusion |
| ICACT20210250 Slide.18
[Big Slide]
[YouTube] |
Chrome Click!! |
 |

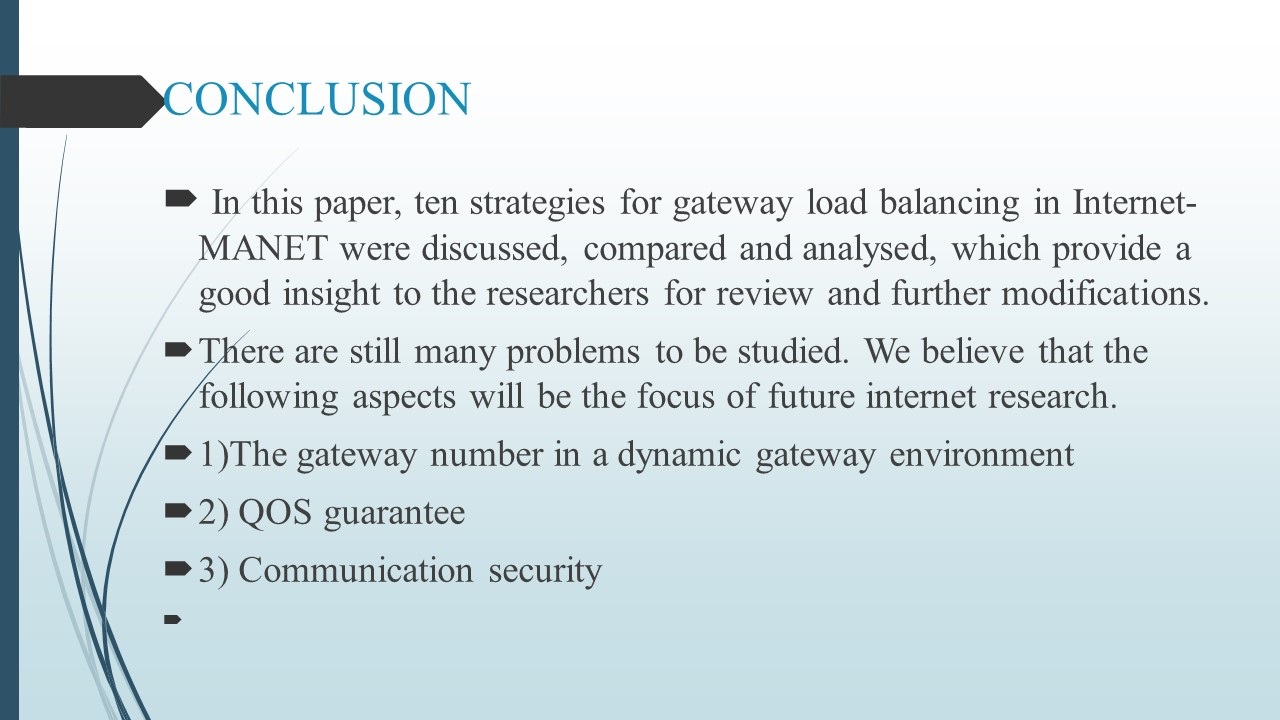

In the end, review this paper, ten strategies for gateway load balancing were discussed, compared and analysed, which provide a good insight to the researchers. But There are still many problems to be studied. We believe that The gateway number in dynamic gateway environment, QOS guarantee and Communication security will be the focus of future internet research. |
| ICACT20210250 Slide.19
[Big Slide]
[YouTube] |
Chrome Click!! |
 |
Thank you. |
