 ICACT20220281 Slide.01
[Big Slide]
|
Chrome  Click!! |
 |
This presentation is about Ergodic Capacity Analysis of OFDM-based
NB-PLC Systems
|
| ICACT20220281 Slide.02
[Big Slide]
|
Chrome Click!! |
 |
The outline of this presentation is as follows:
1 Introduction
2 Modelling And Performance Analysis
3 Field Measurements
4 Results And Discussion
5 Conclusion.
|
| ICACT20220281 Slide.03
[Big Slide]
|
Chrome Click!! |
 |
Let us start by the introduction |
| ICACT20220281 Slide.04
[Big Slide]
|
Chrome Click!! |
 |

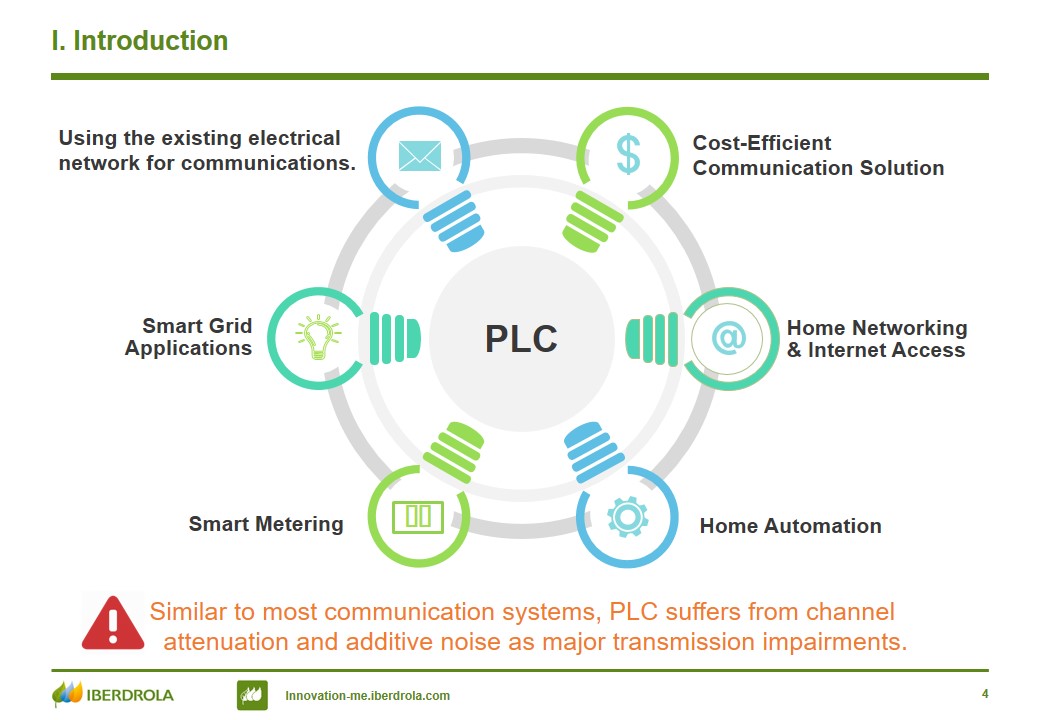

The PLC presents many advantages as presented in this graph.
However, similar to most communication systems, PLC suffers from channel
attenuation and additive noise as major transmission impairments.
In this paper, we present Ergodic Capacity Analysis of OFDM-based
NB-PLC Systems.
|
| ICACT20220281 Slide.05
[Big Slide]
|
Chrome Click!! |
 |
Let us move to Modelling And Performance Analysis
|
| ICACT20220281 Slide.06
[Big Slide]
|
Chrome Click!! |
 |

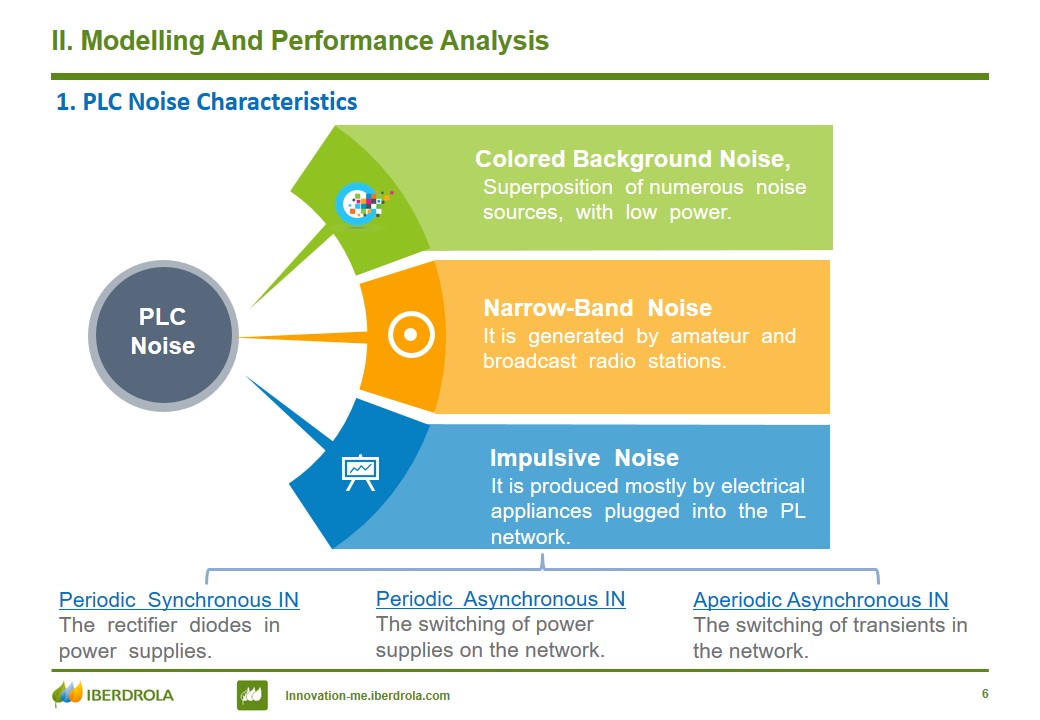

In this graph we present PLC Noise Characteristics
|
| ICACT20220281 Slide.07
[Big Slide]
|
Chrome Click!! |
 |

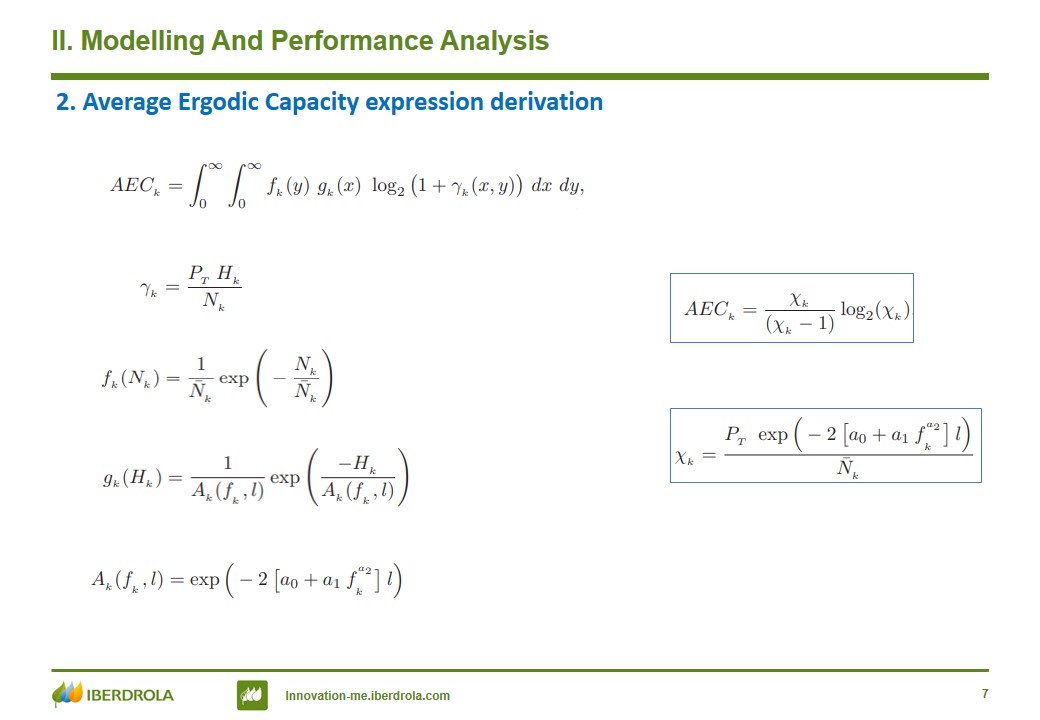

The derivation of the AEC is presented as follows |
| ICACT20220281 Slide.08
[Big Slide]
|
Chrome Click!! |
 |
let us move to the next slide |
| ICACT20220281 Slide.09
[Big Slide]
|
Chrome Click!! |
 |

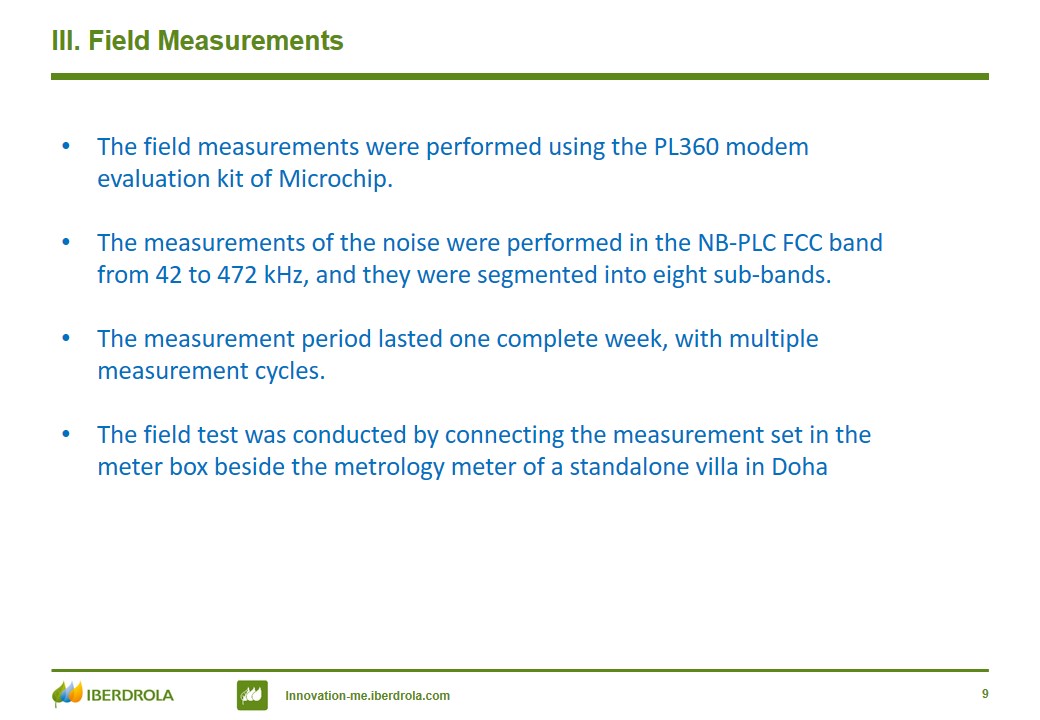

The field measurements were performed using the PL360 modem evaluation kit of Microchip.
The measurements of the noise were performed in the NB-PLC FCC band from 42 to 472 kHz, and they were segmented into eight sub-bands.
The measurement period lasted one complete week, with multiple measurement cycles.
The field test was conducted by connecting the measurement set in the meter box beside the metrology meter of a standalone villa in Doha
|
| ICACT20220281 Slide.10
[Big Slide]
|
Chrome Click!! |
 |
Let us move to the Results And Discussion
|
| ICACT20220281 Slide.11
[Big Slide]
|
Chrome Click!! |
 |

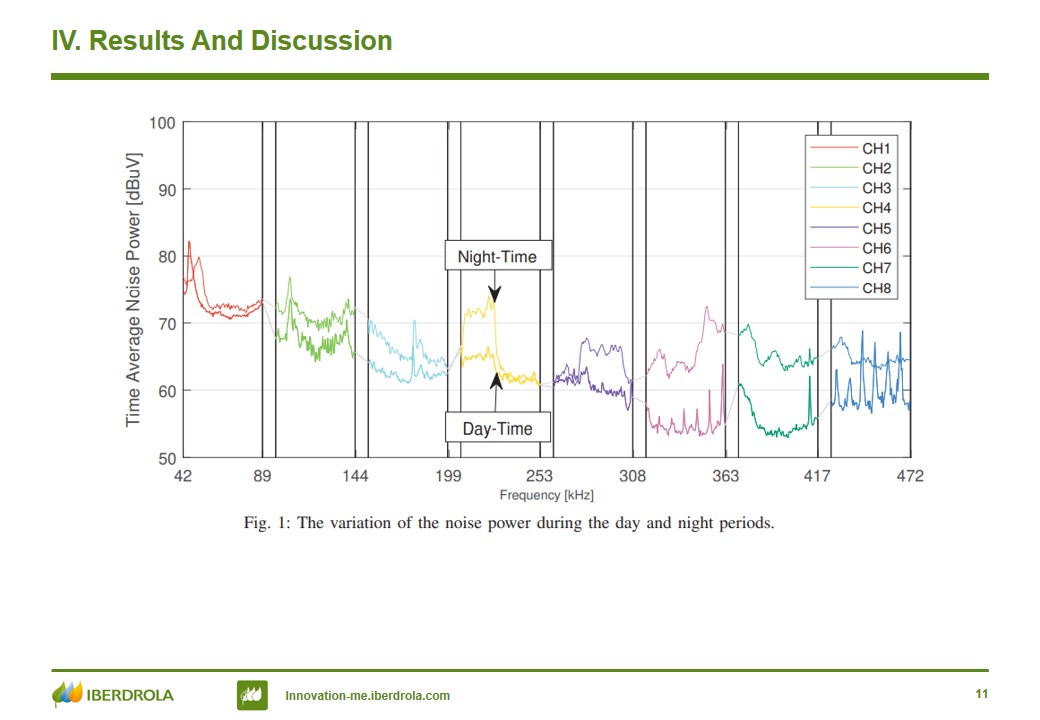

Figure 1 presents The variation of the noise power during the day and night periods |
| ICACT20220281 Slide.12
[Big Slide]
|
Chrome Click!! |
 |

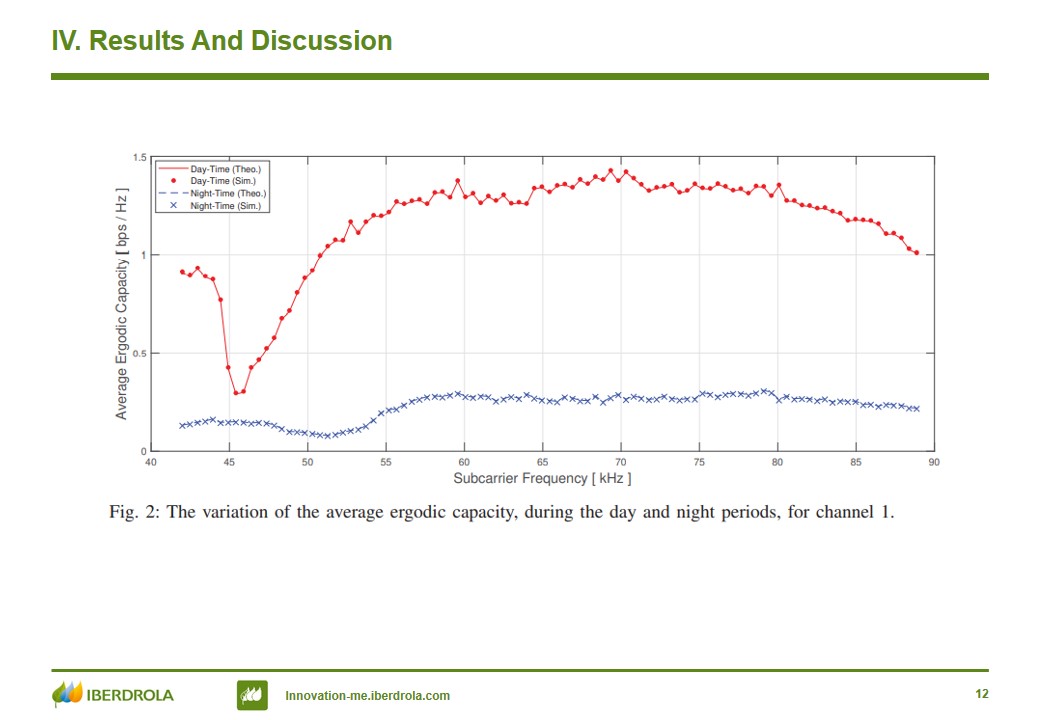

Figure 2 presents The variation of the average ergodic capacity, during the day and night periods, for channel 1. |
| ICACT20220281 Slide.13
[Big Slide]
|
Chrome Click!! |
 |

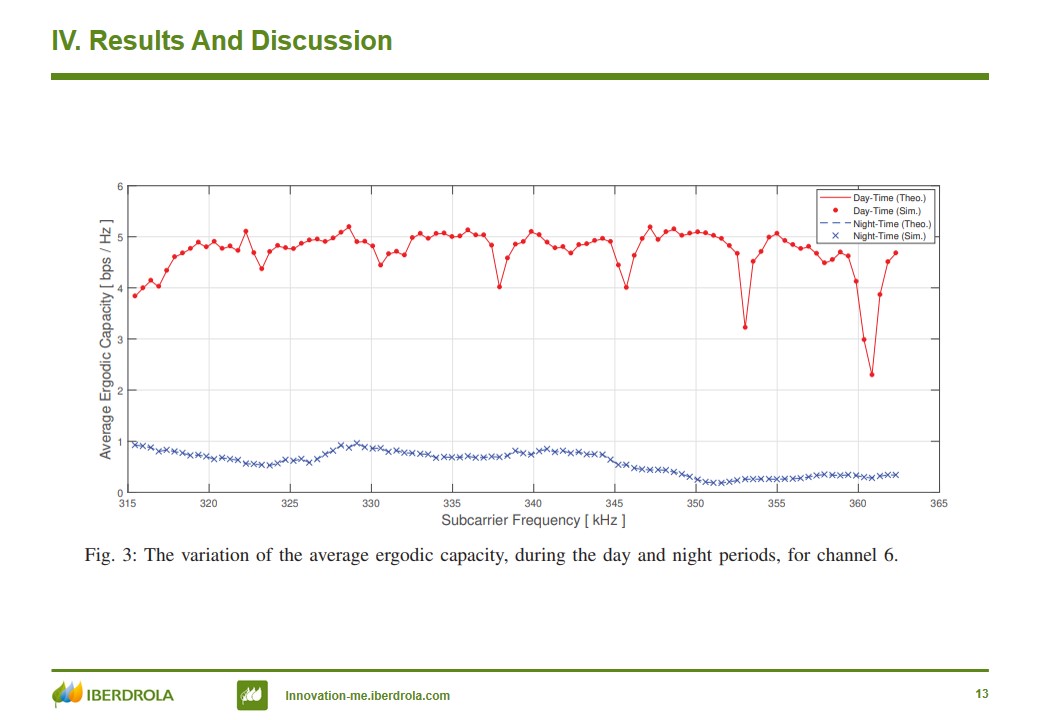

Fig. 3 presents the variation of the average ergodic capacity, during the day and night periods, for channel 6 |
| ICACT20220281 Slide.14
[Big Slide]
|
Chrome Click!! |
 |

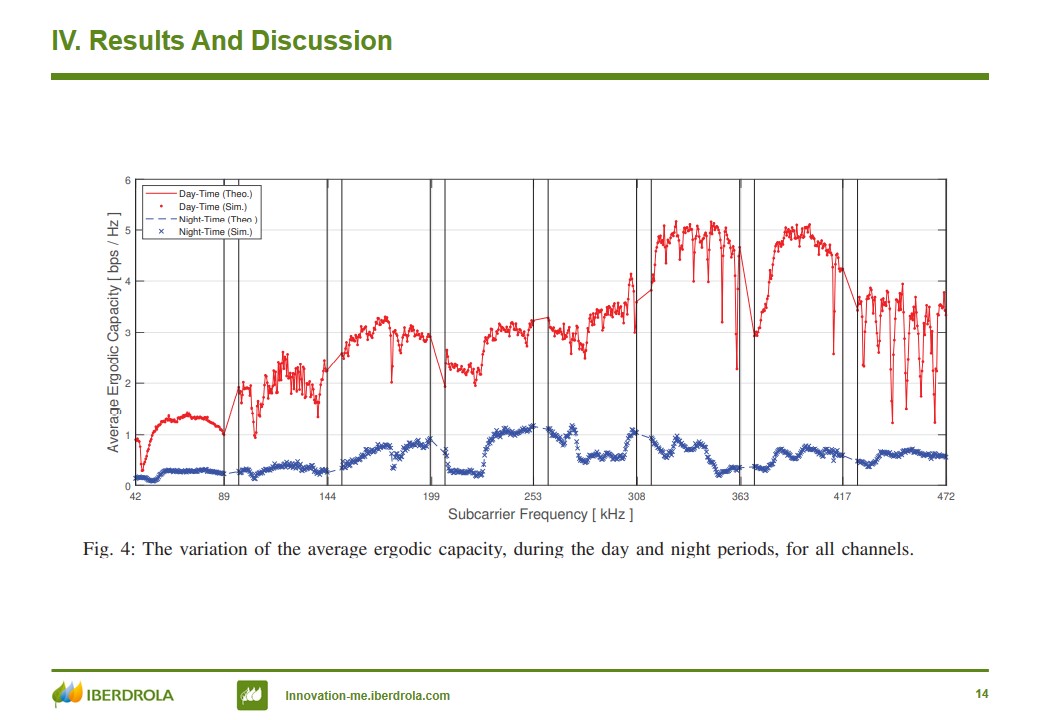

Figure 4 presents The variation of the average ergodic capacity, during the day and night periods, for all channels. |
| ICACT20220281 Slide.15
[Big Slide]
|
Chrome Click!! |
 |
let us move to the conclusion |
| ICACT20220281 Slide.16
[Big Slide]
|
Chrome Click!! |
 |

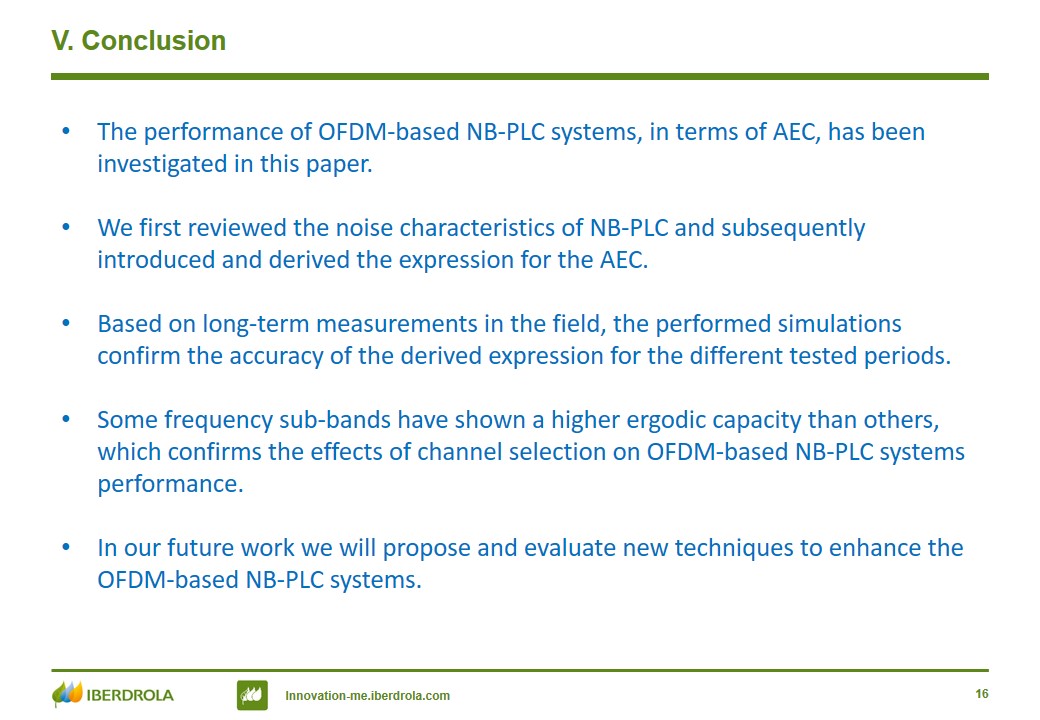

The performance of OFDM-based NB-PLC systems, in terms of AEC, has been investigated in this paper.
We first reviewed the noise characteristics of NB-PLC and subsequently introduced and derived the expression for the AEC.
Based on long-term measurements in the field, the performed simulations confirm the accuracy of the derived expression for the different tested periods.
Some frequency sub-bands have shown a higher ergodic capacity than others, which confirms the effects of channel selection on OFDM-based NB-PLC systems performance.
In our future work we will propose and evaluate new techniques to enhance the OFDM-based NB-PLC systems.
|
| ICACT20220281 Slide.17
[Big Slide]
|
Chrome Click!! |
 |
Thank You For Your Attention
|
